KTM 2024 Enduro Updated

Challenge Accepted! The 2024 KTM EXC and EXC-F range has redefined the limits.

KTM Press Release with amendments for Australian spelling.
If you wish to skim through a point-form summary that we summarised, scroll to the bottom.

An all-new hydro-formed, laser-cut, and robot-welded frame forms the backbone of the 2024 KTM Enduro range. This brings new longitudinal and torsional flex parameters for unmatched rider feedback, energy absorption, and straight-line stability to the riding experience but also provides the foundation on which the 2024 model range is built.

Upfront, the KTM EXC (two stroke) and EXC-F (four stroke) range now boast an all-new 48 mm WP XACT Closed Cartridge spring fork, featuring a new mid-valve piston concept that optimizes oil flow within the cartridge.

The KTM Enduro models continue to feature the proven PDS shock system, which for 2024 is updated and optimized to work fluidly with the new frame concept. This is mated to a new WP XPLOR PDS rear shock.

As an industry first, the suspension at both ends remains fully adjustable for compression and damping by way of hand clickers, without the need for any tools, and easy set preload adjustability on the rear.

An all-new lightweight 2-piece subframe, constructed from a combination of polyamide and reinforced aluminum. It delivers outstanding handling and rider feedback, as well as remarkable robustness. All electronic components, including an all-new Offroad Control Unit, are fully integrated into the subframe for easy access and improved protection.

More notably, the 2024 KTM EXC range benefits from new bodywork all around. This has been developed with input from the Red Bull KTM Factory Riders to deliver an improved rider triangle for better knee contact, especially standing on the pegs.

A new front fender design now also features mud-repelling fins for expelling dirt and mud from hitting the rider or radiators, while a new 8.3 litre – 4-stroke – and 8.9 litre – 2-stroke – transparent, polythene (XPE) fuel tanks for easy fuel level monitoring complete the bodywork package.

Monitoring the electronics comes courtesy of a totally independent OCU under the seat, which replaces the use of electronic fuses and relays. In the event of any electrical component failure, the outputs are deactivated individually, with the error status of each unit indicated by a red or green LED light. This makes for quick and easy troubleshooting on the trail.

In terms of engines, the 2-stroke model range once again takes its place as the leader of the oil-burner paddock, debuting new electronic Throttle Body Injection technology. Dubbed TBI for short, it provides almost carburetor levels of ultra-smooth power delivery, while eliminating the need for re-jetting at different altitudes.

The reed valve case has also received an important design update, with new plastic flaps on the outside of the reed valve case for improved sealing of the intake tract. This new design avoids fuel excess in extreme up- or downhill sections which could lead to the fueling running rich.

A beneficial side effect of the new electronic fuel injection and the ECU is implementing the new electronic exhaust control, allowing for two different engine maps, selectable via an optional Map Select switch.

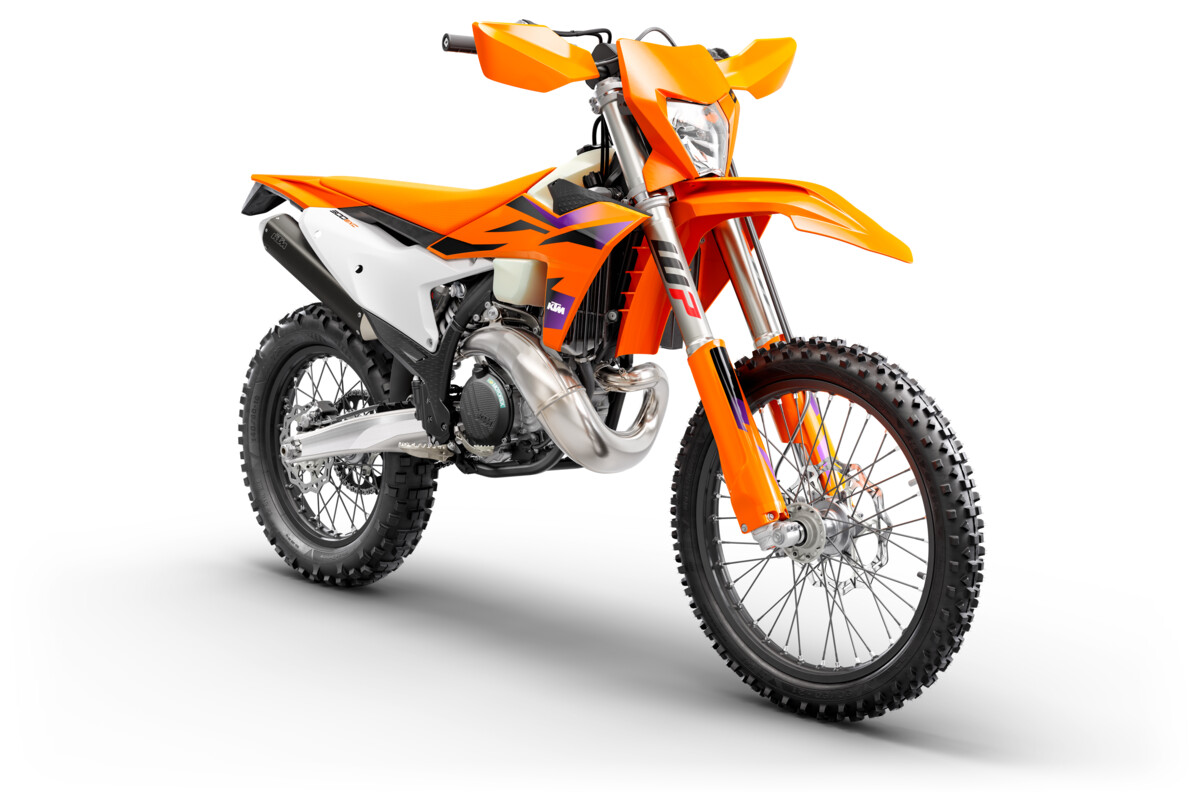

The 2024 KTM EXC 2-stroke range will once again consist of the following model line-up:
● KTM 150 EXC
● KTM 250 EXC
● KTM 300 EXC

The 4-stroke model range provides the most concise offering of models. All models in the 4-stroke range benefit from class-winning engines, engineered to deliver massive torque down low with an explosive power delivery at higher RPMs.

An improved centre of gravity was achieved by tilting the engine 2° backward and repositioning the front sprocket 3 mm lower, for greatly improved handling and maneuverability. Together with the benefits of mass centralization and reduced weight, the anti-squat behavior of the chassis was significantly improved making for improved traction on extreme inclines and powering out of corners in special enduro stages.

The 2024 KTM EXC-F also debuts the optional addition of Traction Control and for the first time ever on an enduro machine – a Quickshifter function. The latter makes for clutchless upshifts from 2nd to 6th gear, allowing riders to keep the throttle pinned open while changing through the gears for improved control. These can be toggled on or off via an optional and newly designed Map Select Switch.

The 2024 KTM EXC-F 4-stroke range consists of the following models:
● KTM 250 EXC-F
● KTM 350 EXC-F
● KTM 450 EXC-F
● KTM 500 EXC-F

The 2024 KTM EXC range is the culmination of many years at the top end of Enduro competition, bringing together a dynamic combination of race-bred performance, ergonomics, and technology to challenge any terrain and redefine the limit.

As always, and thanks to KTM’s global networks of dealers, the availability of support and parts needed to compete at the highest level is easily accessible, with the added availability of dedicated KTM PowerWear and KTM PowerParts which have been designed to allow for the highest levels of performance, protection, and mobility for all offroad riders and racers.

two-stroke: our point form summary

Frame

• Frame has undergone major updates to improve overall dynamics, anti-squat behavior, and overall stability.
• Thicker frame walls now contribute to improved reliability.
• Specifically engineered longitudinal rigidity provides exceptional rider feedback, energy absorption, and stability.
• Repositioning of rotating masses in the frame and forged steering head connection.
• Topology-optimized frame wall thickness for specific rigidity and improved reliability in high-stress areas.
• New shock mount, significantly improving anti-squat behavior.
• New parallel frame mounts for improved flex characteristics on 2-stroke models.
• Footrest mounts are moved inwards for less risk of hooking in deep ruts or when scrubbing.
• Durable black finish with standard frame protectors, featuring a new KTM-specific texture.
• Forged one-piece side stand gives the KTM Enduro range the ultimate parking stability.

Subframe

• Weighing in at only 1.815 kg, the new 2-piece polyamide-reinforced aluminum subframe provides impressive weight savings.
• Computational dynamics, carefully calculated rigidity was engineered into the subframe, delivering outstanding handling and feedback.
• Lower subframe supports and frame mounts are cast aluminium.
• Upper subframe is made from an injection-molded polyamide for flex.
• Subframe now more likely to flex and "bend back in to shape" following damage.
• The Offroad Control Unit (OCU) is integrated in to the subframe, where it remains dry, as well as electronic components.

Swingarm

• A new hollow, die-cast aluminum swingarm is designed to offer optimal stiffness and reliability at the lowest possible weight.
• The topology has been optimized for rigidity, while an improved casting process reduces weight by approximately 190 g.
• A new 22 mm rear axle has also been fitted to match the new flex characteristics of the chassis.
• A new chain guard and chain sliders have been added, resulting in improved durability.
• Chain guard has less chance of hooking on boots or external objects.
• Reduction indirt build-up around the swingarm and chain guard.
• Chain adjustment markings are now also visible from above.

Triple Clamps and Handlebars

• A “more forgiving” high-flex steering stem for more shock absorption and flex to the rider.
• The upper triple clamp now tightened to 20 Nm, and the lower triple clamp to 15 Nm, for more stiffness.
• New topology-optimized bar mounts that provide increased surface area grip.
• New, black, tapered NEKEN aluminum handlebars.
• The same proprietary KTM bend as found on the latest KTM SX models.
• A larger, newly designed KTM branded bar pad for better protection and likeminded design pattern.

WP Closed Cartridge Forks

• All-new 48 mm WP XACT Closed Cartridge fork with a new mid-valve piston concept.
• Optimises the oil flow within the cartridge for fast, consistent damping.
• Avoids any unwanted foaming of fork oil preventing unwanted change in the damping characteristics.
• A new hydro stop in the last 68 mm of the stroke.
• Keeps maximum compression in reserve when tackling extreme obstacles like drop-offs.
• Updated fork protection rings, against dirt intrusion.
• Fork length increased from 928 mm to 940 mm.
• Stroke increased from 292 mm to 300 mm.
• Suspension settings taken from KTM and WP R&D.

WP XPLOR PDS Rear Shock

• All-new design of the adjustable shock.
• Progressive Damping System remains a signature element for KTM.
• More compact, with an overall length decreased from 415 mm to 402.7 mm.
• Stroke decreased from 105 mm to 102.7 mm.
• 380 g weight reduction.
• New main piston, designed to optimize oil flow and more consistent damping.
• New bearing seals which now set the benchmark when it comes to maintenance and service intervals.
• Now with adjustable hand clickers, adjust on the fly without tools.
• Compression adjusted on the top; rebound on the bottom.
• Preload can also be adjusted by opening the securing ring with an Allen wrench and adjusting accordingly.

Ergonomics

• Complete refresh of the rider triangle, in focus to knee angle when standing.
• Added contact surfaces on the bodywork.
• New flat seat profile with new orange grip cover.
• Recessed grip pocket under the seat.
• New front fender with mud fins, keeping it away from rider and radiators.

CTG (Colour, Trim, Graphics)

• If you didn't know what CTG stood for, neither did I (thank you Google).
• Inspired from the 1990's using purple which was the primary with KTM back then (nod to the past).
• Orange remains the dominant as its proven to be durable over time.

Fuel Tank

• New 9 litre tank for two-stroke (4 stroke gets 8.5 litres).
• A transparent, polythene (XPE) tank with threaded filler cap.

Airbox

• Redesigned for 2024.
• Precisely positioned inlet ducts aimed at preventing air deformation.
• Ensures maximum airflow and maximum filter protection.
• Still easily accessed on the left with no tools behind a cover.
• TwinAir filter and filter cage design with foolproof mounting.
• Attention given to sealing the airbox for when around river crossings with a splash protector.

LED Headlight

• A completely new LED headlight unit.
• Light output has been improved by 300%.
• Riding in the dark now completely different, a big advantage for competition and events.
• The headlight mask itself integrates a triple clamp protector which covers the lower triple clamp.
• Inside the headlight, the LED lighting unit receives a new quick-release system.
• Can repair the headlight due to damage, negating the need to replace the entire unit.

Battery

• A Lithium-Ion battery which is 1 kg lighter than a lead acid battery.
• Retrofitment of a kick start is no longer possible, on any EXC or EXC-F model.

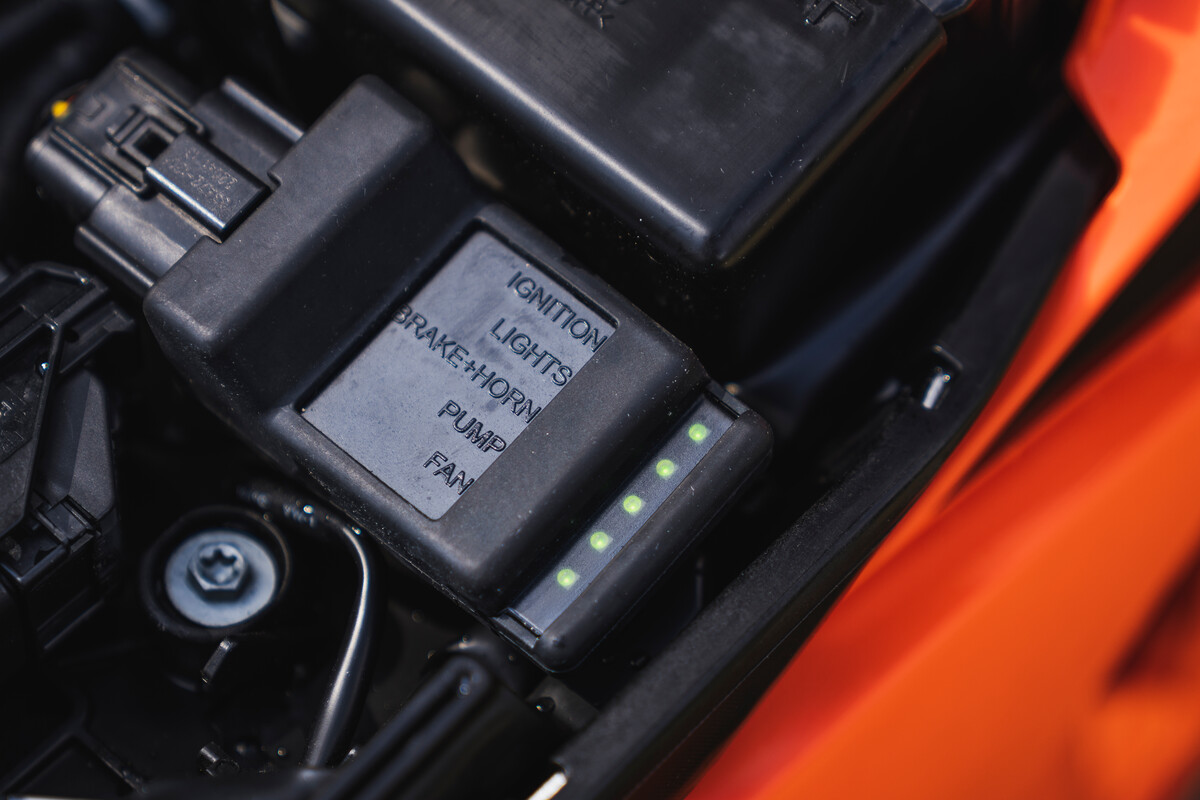

OCU (Offroad Control Unit)

• The all-new and totally independent OCU replaces the use of electronic fuses and relays.
• OCU can be found under the seat.
• If there is a electrical component failure, outputs are deactivated individually.
• Error status' are shown by a green or red LED marker, easy to diagnose when away.
• No need to carry spare fuses anymore.

ROS (Roll Over Sensor)

• Taken from the motocross range.
• Shuts the engine off in the event of a severe crash.

Optional Map Switch

• Switch between two engine maps (for two-stroke).
• Map 1 = mellow and standard; Map 2 = aggressive and crispy throttle.
• Traction Control, Quickshifter are not available on two-stroke.

Two Stroke Injection Updates

• Since 2018, TPI has been featured.
• All-new electronically controlled Throttle Body Injection system.
• With Keihin, a 39 mm throttle body was developed to withstand the harsh and full throttle demands of competitive motocross.
• A specifically tuned ECU from Vitesco works in conjunction with the Keihin throttle body.
• Always deliver the correct air-fuel mixture by constantly analyzing water temperature, air temperature.
• Also measures ambient pressure, along with the pressure within the crankcase, rpm, and throttle position.
• Newly designed injectors also work to provide an optimal burn rate.
• A improved Sauter mean diameter (SMD), producing a finer spray of fuel for a cleaner ignition and less fuel wastage.

Reed Valve

• The reed valve case has received an important design update.
• Newly added plastic flaps on the outside of the reed valve case, better sealing.
• Negates over-fueling in extreme up- or downhill sections, no bogging, no running rich.

Electric Power Valve

• The power valve is controlled according to the throttle position and engine RPMs.
• The EMS auto-calibrates, there’s no more hassle with incorrect power valve adjustments.
• Result is linear outputs and the ability to have the two engine maps with optional map switch.

Exhaust

• A more compact exhaust header design meaning better ground clearance.
• The silencer also benefits from the compact treatment, crafted from lightweight aluminum finished off in a black coating.
